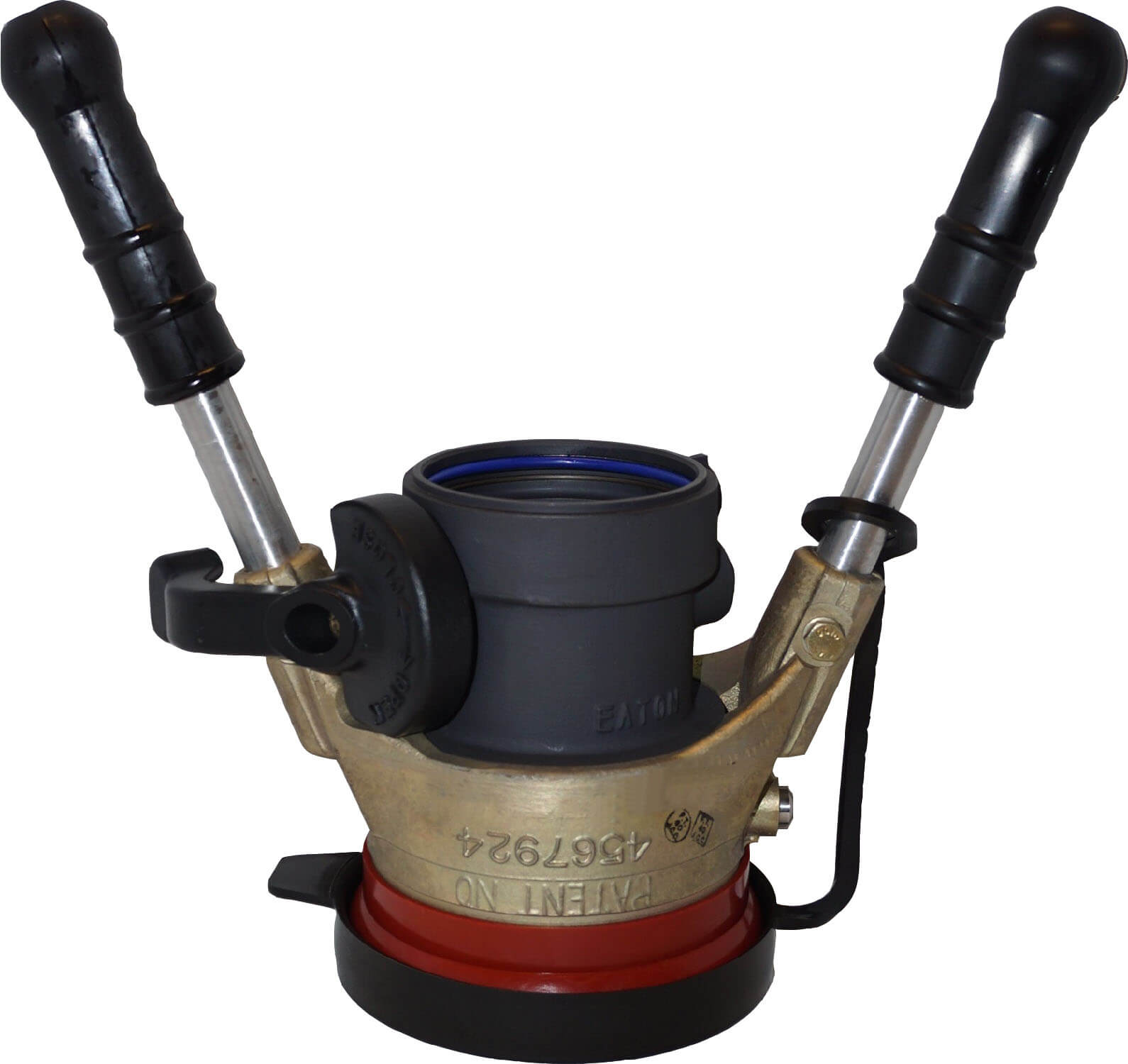

Product Eaton Carter 64348 Pressure Refueling Nozzle

The 64348 is a 2½-inch pressure refueling nozzle designed for underwing refueling operations. It connects to 3-lug international standard aircraft adapters and features a modular design to accommodate various optional configurations.

• Modular construction: Allows customization with options such as hose end regulators and quick disconnects.
• Self-adjusting pressure-loaded nose seal: Ensures leak-free operation under various conditions.
• Rugged and lightweight design: Enhances durability while maintaining ease of handling.
• Positive mechanical interlock: Prevents fuel flow until the nozzle is securely connected to the aircraft adapter.

• Operating pressure range: Up to 200 psi (13.8 bar).
• Rated flow: Up to 600 gallons per minute (2271 liters per minute).
• Pressure drop: Approximately 12 psi (0.83 bar) at 600 gpm flow.

Regular maintenance includes inspecting and replacing wear items such as the nose seal and O-rings. Detailed maintenance procedures are provided in the 64348 Underwing Nozzle Service Manual.

Yes, special tools such as the Poppet Adjustment Gauge (Model 64000) and the Ball Tool (Model 61607) are recommended for proper maintenance.
